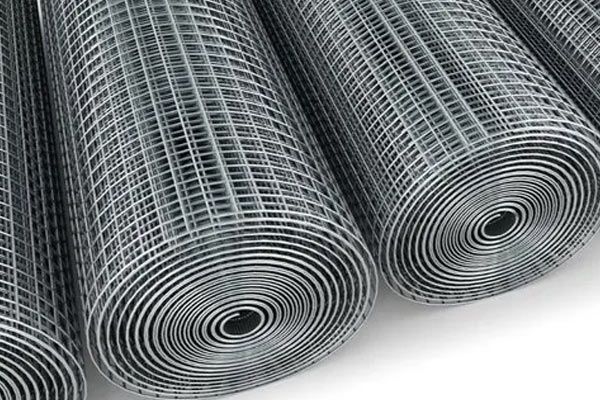

Stainless Steel & Galvanized Wire Mesh Rolls

We produce and export a wide variety of galvanised wire mesh in heavy wire gauge, ranging from the finest to the coarsest screen mesh, as well as stainless steel wire mesh rolls in grades 304, 304 L, and 316 L. Our product line includes plain weave, twill, dutch plain weave, dutch twill weave and reversible dutch weave in sizes ranging from 2 to 1500 mesh. We are able to meet requirements as soon as possible or in the greatest quantity possible at ex-stock.

Mesh Per Inch Wire SWG Wire Dia. in mm Approx. % Opening Micron
10 22 0.71 51.8 1830
12 26 0.45 61.4 1667
14 26 0.45 62.0 1364
16 26 0.45 63.0 1138
16 28 0.37 58.3 1248
20 28 0.37 45.6 900
20 27 0.41 45.1 870
20 26 0.45 41.0 820
20 24 0.56 31.4 720
24 26 0.45 41.0 810
24 28 0.35 41.0 658
30 30 0.31 41.3 557
30 32 0.27 43.6 508
40 32 0.25 36.0 365
40 34 0.22 40.0 401
40 36 0.19 48.4 442
40 38 0.15 57.8 460
50 36 0.19 38.4 315
50 38 0.15 48.0 311
60 36 0.19 25.6 230
60 38 0.15 41.2 271
80 40 0.12 36.0 196
100 42 0.10 38.6 152
120 44 0.08 35.0 130
150 46 0.06 43.0 100
Mesh Per Inch Wire SWG Wire Dia. in mm Approx. % Opening Micron
200 46 0.060 32 75
250 48 0.040 36 62
300 48.5 0.036 34 50
325 48.5 0.036 30 43
400 49 0.030 28 36
500 50 0.025 25 26
G. I. Welded Wire Mesh Rolls
1/2″ × 1/2″ × 17 SWG 4′ × 50′
1″ × 1″ × 14 SWG 4′ × 50′
2″ × 2″ × 10 SWG 4′ × 50′
3″ × 3″ × 8 SWG 4′ × 50′
1.25″ × 1.25″ × 12 SWG (MS) 4′ × 50′
2.5″ × 2.5″ × 14 SWG (MS) 4′ × 50′
G. I. Wire Mesh Rolls
Mesh × SWG Weight Size
8 Mesh × 20 SWG 28 KG. 3′ × 15 MTR
10 Mesh × 22 SWG 21 KG. 3′ × 15 MTR
16 Mesh × 24 SWG 22 KG. 3′ × 15 MTR
16 Mesh × 26 SWG 15 KG. 3′ × 15 MTR
20 Mesh × 24 SWG 30 KG. 3′ × 15 MTR
20 Mesh × 26 SWG 22 KG. 3′ × 15 MTR
30 Mesh × 28 SWG 22 KG. 3′ × 15 MTR
30 Mesh × 30 SWG 15 KG. 3′ × 15 MTR
40 Mesh × 32 SWG 17 KG. 3′ × 15 MTR
